### #Actualbwhiting

Posted 22 March 2012 - 06:32 AM

Hi folks, generated some revolution meshes, and noticed that while my uvs seem to be fine there are seams where there join up:

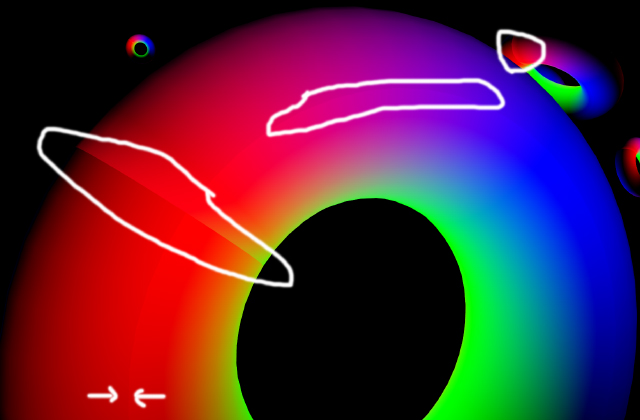

bitangent

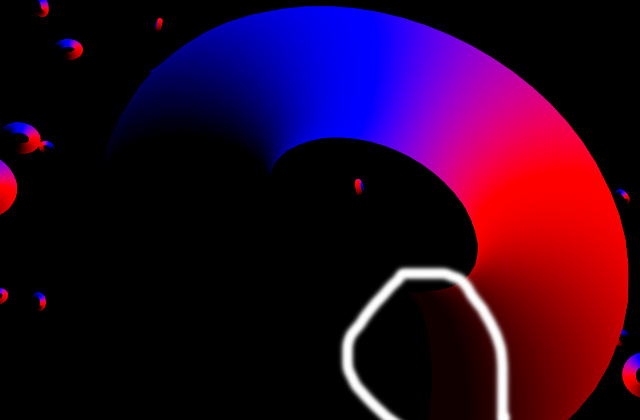

tangent:

The seam along one axis is much more apparent than the other.
There must be a simple way to get rid of these and though I would put it to you guys.

While I could probably calculate these more accurately procedurally, I would like the method to work for loaded geometry too.

here's the code:

var ids:Vector.<uint> = mesh.ids;
var vertices:Vector.<Number> = mesh.vertices;
var uvs:Vector.<Number> = mesh.uvs;
var tangents:Vector.<Number> = new Vector.<Number>(vertices.length);
var bitangents:Vector.<Number> = new Vector.<Number>(vertices.length);
var numTriangles:int = ids.length;
for(var i:int = 0; i < numTriangles; i+=3)
{
var id1:int = ids[i];
var id2:int = ids[i+1];
var id3:int = ids[i+2];
var p1:Vector3D = new Vector3D(vertices[int(id1 * 3)], vertices[int(id1 * 3 + 1)], vertices[int(id1 * 3 + 2)]);
var p2:Vector3D = new Vector3D(vertices[int(id2 * 3)], vertices[int(id2 * 3 + 1)], vertices[int(id2 * 3 + 2)]);
var p3:Vector3D = new Vector3D(vertices[int(id3 * 3)], vertices[int(id3 * 3 + 1)], vertices[int(id3 * 3 + 2)]);

var uv1:Point = new Point(uvs[int(id1 * 2)], uvs[int(id1 * 2 + 1)]);
var uv2:Point = new Point(uvs[int(id2 * 2)], uvs[int(id2 * 2 + 1)]);
var uv3:Point = new Point(uvs[int(id3 * 2)], uvs[int(id3 * 2 + 1)]);
var edge1:Vector3D = p2.subtract(p1);
var edge2:Vector3D = p3.subtract(p1);
var edge1uv:Point = uv2.subtract(uv1);
var edge2uv:Point = uv3.subtract(uv1);

var cp:Number = edge1uv.y * edge2uv.x - edge1uv.x * edge2uv.y;
if ( cp != 0 )
{
var mul:Number = 1 / cp;
var tangent:Vector3D = new Vector3D();
var bitangent:Vector3D = new Vector3D();
tangent.x = (edge2uv.y * edge1.x - edge1uv.y * edge2.x) * mul;
tangent.y = (edge2uv.y * edge1.y - edge1uv.y * edge2.y) * mul;
tangent.z = (edge2uv.y * edge1.z - edge1uv.y * edge2.z) * mul;

bitangent.x = (-edge2uv.x * edge1.x + edge1uv.x * edge2.x) * mul;
bitangent.y = (-edge2uv.x * edge1.y + edge1uv.x * edge2.y) * mul;
bitangent.z = (-edge2uv.x * edge1.z + edge1uv.x * edge2.z) * mul;

tangent.normalize();
bitangent.normalize();

tangents[int(id1 * 3)] = tangent.x;
tangents[int(id1 * 3 + 1)] = tangent.y;
tangents[int(id1 * 3 + 2)] = tangent.z;

tangents[int(id2 * 3)] = tangent.x;
tangents[int(id2 * 3 + 1)] = tangent.y;
tangents[int(id2 * 3 + 2)] = tangent.z;

tangents[int(id3 * 3)] = tangent.x;
tangents[int(id3 * 3 + 1)] = tangent.y;
tangents[int(id3 * 3 + 2)] = tangent.z;

bitangents[int(id1 * 3)] = bitangent.x;
bitangents[int(id1 * 3 + 1)] = bitangent.y;
bitangents[int(id1 * 3 + 2)] = bitangent.z;

bitangents[int(id2 * 3)] = bitangent.x;
bitangents[int(id2 * 3 + 1)] = bitangent.y;
bitangents[int(id2 * 3 + 2)] = bitangent.z;

bitangents[int(id3 * 3)] = bitangent.x;
bitangents[int(id3 * 3 + 1)] = bitangent.y;
bitangents[int(id3 * 3 + 2)] = bitangent.z;
}
}
mesh.tangents = tangents;
mesh.bitangents = bitangents;

hopefully you will know right off the bat what the issue is, thank for your time

edit:
ah, looks like all I need to do is average them as I would the normals? if that's case then boy am I a melon.

### #1bwhiting

Posted 22 March 2012 - 05:47 AM

Hi folks, generated some revolution meshes, and noticed that while my uvs seem to be fine there are seams where there join up:

bitangent

tangent:

The seam along one axis is much more apparent than the other.
There must be a simple way to get rid of these and though I would put it to you guys.

While I could probably calculate these more accurately procedurally, I would like the method to work for loaded geometry too.

here's the code:

var ids:Vector.<uint> = mesh.ids;
var vertices:Vector.<Number> = mesh.vertices;
var uvs:Vector.<Number> = mesh.uvs;
var tangents:Vector.<Number> = new Vector.<Number>(vertices.length);
var bitangents:Vector.<Number> = new Vector.<Number>(vertices.length);
var numTriangles:int = ids.length;
for(var i:int = 0; i < numTriangles; i+=3)
{
var id1:int = ids[i];
var id2:int = ids[i+1];
var id3:int = ids[i+2];
var p1:Vector3D = new Vector3D(vertices[int(id1 * 3)], vertices[int(id1 * 3 + 1)], vertices[int(id1 * 3 + 2)]);
var p2:Vector3D = new Vector3D(vertices[int(id2 * 3)], vertices[int(id2 * 3 + 1)], vertices[int(id2 * 3 + 2)]);
var p3:Vector3D = new Vector3D(vertices[int(id3 * 3)], vertices[int(id3 * 3 + 1)], vertices[int(id3 * 3 + 2)]);

var uv1:Point = new Point(uvs[int(id1 * 2)], uvs[int(id1 * 2 + 1)]);
var uv2:Point = new Point(uvs[int(id2 * 2)], uvs[int(id2 * 2 + 1)]);
var uv3:Point = new Point(uvs[int(id3 * 2)], uvs[int(id3 * 2 + 1)]);
var edge1:Vector3D = p2.subtract(p1);
var edge2:Vector3D = p3.subtract(p1);
var edge1uv:Point = uv2.subtract(uv1);
var edge2uv:Point = uv3.subtract(uv1);

var cp:Number = edge1uv.y * edge2uv.x - edge1uv.x * edge2uv.y;
if ( cp != 0 )
{
var mul:Number = 1 / cp;
var tangent:Vector3D = new Vector3D();
var bitangent:Vector3D = new Vector3D();
tangent.x = (edge2uv.y * edge1.x - edge1uv.y * edge2.x) * mul;
tangent.y = (edge2uv.y * edge1.y - edge1uv.y * edge2.y) * mul;
tangent.z = (edge2uv.y * edge1.z - edge1uv.y * edge2.z) * mul;

bitangent.x = (-edge2uv.x * edge1.x + edge1uv.x * edge2.x) * mul;
bitangent.y = (-edge2uv.x * edge1.y + edge1uv.x * edge2.y) * mul;
bitangent.z = (-edge2uv.x * edge1.z + edge1uv.x * edge2.z) * mul;

tangent.normalize();
bitangent.normalize();

tangents[int(id1 * 3)] = tangent.x;
tangents[int(id1 * 3 + 1)] = tangent.y;
tangents[int(id1 * 3 + 2)] = tangent.z;

tangents[int(id2 * 3)] = tangent.x;
tangents[int(id2 * 3 + 1)] = tangent.y;
tangents[int(id2 * 3 + 2)] = tangent.z;

tangents[int(id3 * 3)] = tangent.x;
tangents[int(id3 * 3 + 1)] = tangent.y;
tangents[int(id3 * 3 + 2)] = tangent.z;

bitangents[int(id1 * 3)] = bitangent.x;
bitangents[int(id1 * 3 + 1)] = bitangent.y;
bitangents[int(id1 * 3 + 2)] = bitangent.z;

bitangents[int(id2 * 3)] = bitangent.x;
bitangents[int(id2 * 3 + 1)] = bitangent.y;
bitangents[int(id2 * 3 + 2)] = bitangent.z;

bitangents[int(id3 * 3)] = bitangent.x;
bitangents[int(id3 * 3 + 1)] = bitangent.y;
bitangents[int(id3 * 3 + 2)] = bitangent.z;
}
}
mesh.tangents = tangents;
mesh.bitangents = bitangents;

hopefully you will know right off the bat what the issue is, thank for your time
