Project: Voxyc

Lighting Voxel Buildings With Per-Vertex Lighting

VoxycDev

703 views

I finally found a way to light voxel buildings with per-vertex lighting that looks decent. They key is to have a RGB values for each voxel, and set them in the following way:

  • Start from an empty point somewhere in the room
  • Expand on all three axes as far as you can until you hit a voxel on each axis, save min/max values
  • Fill a rectangle box bound by min/max values on the three axes with desired RGB values

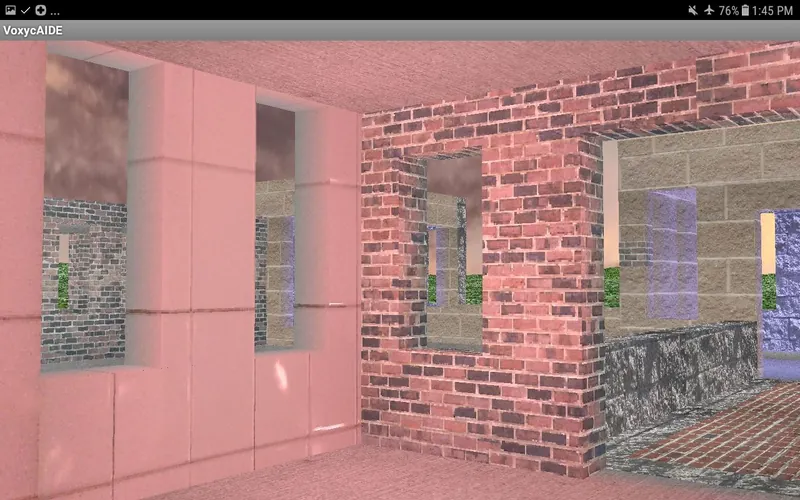

This works relatively well if each corner of each voxel/quad takes the color of the voxel value to the left/lower/rear of it (on x, y and z correspondingly). Then when you go from a somewhat radical RGB value (1.0, 1.0, 1.4 in this case) to default 1.0, 1.0, 1.0 in the next voxel, you get a nice gradient due to interpolation in the shader. If bet it will look even nicer if I try to make a gradient in the RGB voxel values from top to bottom, as if the light comes from the lamps on the ceiling. Gotta try that next.

Screenshot_20190313-134813.thumb.jpg.45f29d06d1bb106bb5dbfb10657aebe0.jpgScreenshot_20190313-134741.thumb.jpg.ac57eef502daf14d46bf3c1e2c3bc207.jpgScreenshot_20190313-134629.thumb.jpg.a65500411d2d7dd2c605cb904d840d22.jpgScreenshot_20190313-134528.thumb.jpg.43fc51f9e691fb3b541c7fe949de6a94.jpgScreenshot_20190313-134444.thumb.jpg.5fd1d96654684091a5c71f7ca3abf9d3.jpgScreenshot_20190313-134346.thumb.jpg.43ff71a9057b6ca0ed94496487661bf9.jpgScreenshot_20190313-134203.thumb.jpg.39d70ec33d88d3e683ce8b7b85f97da3.jpgScreenshot_20190313-132923.thumb.jpg.2e6e8aea6fdef01d8cc649c1fefd1897.jpg
