# Question on finding contact point

## Recommended Posts

I am developing a simply 2d physics engine and I' ve read the source code of box2d and matter.js. I found some insteresting thing on finding contact point:

Box2d use indicent edge, reference edge and clip to determine a contact point. It's very complex method and hard to understand.

However, matter.js use a very simply method to do the same thing. just find the vertex that contained by opposite polygon with hill-climbing:

var verticesB = SAT._findSupports(bodyA, bodyB, collision.normal),
supports = [];

// find the supports from bodyB that are inside bodyA
if (Vertices.contains(bodyA.vertices, verticesB[0]))
supports.push(verticesB[0]);

if (Vertices.contains(bodyA.vertices, verticesB[1]))
supports.push(verticesB[1]);

// find the supports from bodyA that are inside bodyB
if (supports.length < 2) {
var verticesA = SAT._findSupports(bodyB, bodyA, Vector.neg(collision.normal));

if (Vertices.contains(bodyB.vertices, verticesA[0]))
supports.push(verticesA[0]);

if (supports.length < 2 && Vertices.contains(bodyB.vertices, verticesA[1]))
supports.push(verticesA[1]);
}

and it works well in demo.

My question is: why does box2d use such complex method? It's clear that matter.js's method is better. Or there are some potential shortcomings in matter.js's method?

##### Share on other sites

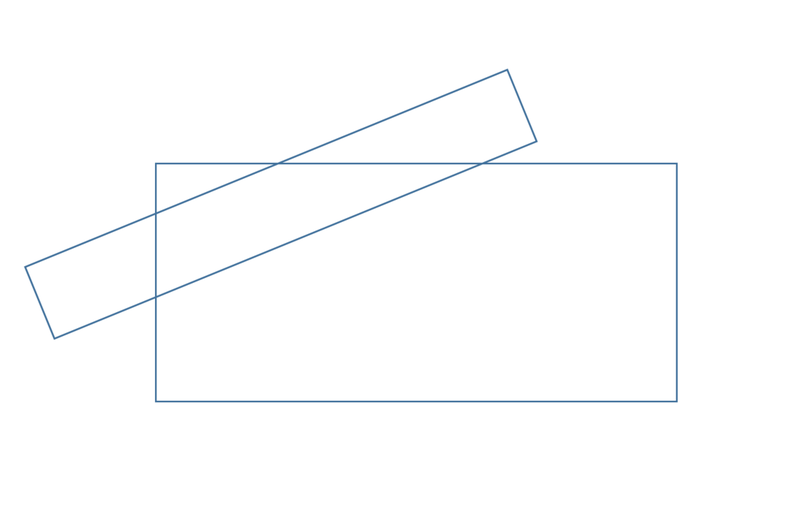

I cannot say what matter.js is doing, but if you only keep vertices which are contained inside the other polygon as contact points you will have a lot of trouble. E.g. see the following picture. The shapes are clearly touching, but none of the vertices of either shape is contained in the other.

I also somewhat disagree that Box2D method is *very* complicated. I would say it is reasonable simple. In particular in 2D. I have pointed out this many times here. If you want to learn about physics programming stick with Box2D and Box2D Lite in the beginning. There are also many resources from the GDC Physics Tutorial which explain every aspect of a physics engine on the Box2D website. These are presentations from experts in this field who do this for a living and have shipped games with this. This is the kind of resource I would be looking for and want to learn from. Box2D has been used by many shipped games including Angry Bird. The stable stacking which is part of the game mechanics is due to its high quality contact point creation and contact block solver. I would not call a method better because you find it easier to understand. :)

Erin gave Box2D Lite its own Github website. You can find it here:

Presentations from GDC Physics Tutorial can be found here:

HTH,

-Dirk

##### Share on other sites
9 minutes ago, Dirk Gregorius said:

I cannot say what matter.js is doing, but if you only keep vertices which are contained inside the other polygon as contact points you will have a lot of trouble. E.g. see the following picture. The shapes are clearly touching, but none of the vertices of either shape is contained in the other.

I also somewhat disagree that Box2D method is *very* complicated. I would say it is reasonable simple. In particular in 2D. I have pointed out this many times here. If you want to learn about physics programming stick with Box2D and Box2D Lite in the beginning. There are also many resources from the GDC Physics Tutorial which explain every aspect of a physics engine on the Box2D website. These are presentations from experts in this field who do this for a living and have shipped games with this. This is the kind of resource I would be looking for and want to learn from. Box2D has been used by many shipped games including Angry Bird. The stable stacking which is part of the game mechanics is due to its high quality contact point creation and contact block solver. I would not call a method better because you find it easier to understand. ﻿

Erin gave Box2D Lite its own Github website. You can find it here:

Presentations from GDC Physics Tutorial can be found here:

HTH,

-Dirk
