    State Machines in Games

    General and Gameplay Programming

    frob
    • Posted By frob

    Source code can be found here: StateMachineTutorialsV5.zip

    Introduction

    Many of the beginners on the site are pre-college students. Often beginners will learn by reading tutorials on the Internet, copying code from books, and trying out things that they find interesting. Sometimes the basic computer science theory topics are ignored or viewed lightly.

    This article will cover one frequently overlooked topic and hopefully underscore its importance to beginners. This article is based on a series of entries from my developer journal. tl;dr -- This used to be a bunch of small pieces. It starts out with boring theory. Keep reading because it ends up with something fun.



    The Computer Science Aspect

    Finite state machines, also called finite state automata, FSMs, or simply state machines, are important in computer theory. Computer theory covers several types of abstract machines, including FSMs. The most famous is probably the Turing Machine, which can represent the logic of any computer algorithm. The FSM is a 'weak' abstract machine. It can only solve a few types of problems and it is easy to make problems that it cannot solve. Even though it is weak we still see them in our daily lives all the time. They exist in everything from elevators to traffic lights; from vending machines to combination locks; from credit card number validation to complex artificial intelligence systems.

    There are several categories of FSMs that game programmers use all the time. These include Acceptors, Transducers, and Sequencers.

    Acceptor machines are useful in creating simple grammars. If you can build an FSM to represent a grammar it is called a regular language. A single acceptor statement in a regular language is called a regular expression. There are many books devoted to using regular expressions to handle user input. You might have noticed that many programmer tools for search and replace contain options to search and replace using regular expressions.

    Transducer machines are often found in game tools. They read some input file and generate a corresponding output file. A tool that consolidates all your files into a single large data file is a transducer. A tool that converts from generic data into a game's final memory format for faster loading time is a transducer.

    Sequencer machines are often found in code and data. They control a sequence of events or actions. This is the type of FSM I'll be covering.



    What does a State Machine Look Like?

    A finite state machine really only has two key components. First, it contains states, which can also be called a node or a vertex. Second, it contains transitions, which are also called edges. One of the states is marked as the starting state. States may also be marked as an exit state. When run, the FSM begins at a starting state. There is an event or trigger or condition that causes it to transition to the next state. There are many ways to picture it. Here is a state machine in table format:


    This machine has four states. (Two entries are for state 2.)



    The same state machine in a graphical format:


    Pretty simple. We don't need to stick with numbers for state names, just like we don't need to stick with i and j or x and y for variable names.



    Here is the same graph with better names:




    Suddenly this state machine looks less like a boring theory topic and much more like a game topic. This type of simple state machine is frequently used for simple NPC game logic.



    Implementing a Simple State Machine

    For a quick-and-dirty simple state machine that will never change, programmers will often just hard code something simple. The most common way to implement that kind of state machine is with a simple switch statement. The full code (including the state machine runner) is attached at the bottom of the article. In this code we have the four different states from the example above.

    public class StateMachine
    {
      public enum State
      {
        Routing,
        Sentrying,
        Attacking,
        Ending
      }

      State mState = State.Routing;
      Random rng = new Random();

      public string GetStateName()
      {
        return mState.ToString();
      }

      public string UpdateState()
      {
        return "Running state " + GetStateName() +". Your game logic goes here.";
      }

      public void NextState()
      {
        switch (mState)
        {
          case State.Routing:
            mState = State.Sentrying;
            break;
          case State.Sentrying:
            mState = State.Attacking;
            break;
          case State.Attacking: // TODO: Make this based on game logic instead of random number generator
            if(rng.NextDouble() < 0.75)
            {
              Console.WriteLine("Random generator says NPC has survived.");
              mState = State.Routing;
            }
            else
            {
              Console.WriteLine("Random generator says NPC did not survive.");
              mState = State.Ending;
            }
            break;
          case State.Ending: // Nothing to do.
            break;
        }
      }

      public bool IsDone()
      {
        return mState == State.Ending;
      }
    }



    This isn't the same as a fancy graph, but it does implement the same logic. Remember that a state machine is just a concept --- the actual implementation details can vary greatly.



    A State Machine Interface

    When building large programs it is a good practice to program against an interface or an abstract base class. This is often called the Dependency Inversion Principle. It allows us to write generic code that can be applied to many different concrete classes.

    For the next few examples, I'm going to use a simple interface for the states and for the state machines.

    Here is the interface:

    public abstract class IStateMachine
    {
      // Accessor to look at the current state.
      public abstract IState CurrentState
      {
        get;
      }

      // List of all possible transitions we can make from this current state.
      public abstract string[] PossibleTransitions();

      // Advance to a named state, returning true on success.
      public abstract bool Advance(string nextState);

      // Is this state a "completion" state. Are we there yet?
      public abstract bool IsComplete();
    }

    public abstract class IState
    {
      // Utility function to help us display useful things
      public abstract string GetName();

      // Do something
      public abstract void Run();

      // This isn't really needed, but it helps in debugging and other tasks.
      // It allows hover-tips and debug info to show me the name of the state
      // rather than the default of the type of the object

      public override string ToString()
      {
        return GetName();
      }
    }



    To go along with that interface we need a simple state machine runner that uses it. Here's the state machine runner I need for these examples:



    static void Main(string[] args)
    {
      // First we need to create the state machine.
      // Note that I'm using the abstract IStateMachine instead of a concrete class.
      IStateMachine machine = GetMachine();

      // We have a machine, now run it.
      while(!machine.IsComplete())
      {
        // Print out our current state
        Console.WriteLine("Currently in " + machine.CurrentState);
        machine.CurrentState.Run();

        // Print out our possible transitions
        Console.WriteLine("\nAvailable choices are:");
        string[] transitions = machine.PossibleTransitions();
        foreach (string item in transitions)
        {
          Console.WriteLine(" " + item);
        }

        // Request a transition from the user
        Console.WriteLine("\nWhat do you want to do?");
        string nextState = Console.ReadLine();
        machine.Advance(nextState);
      }
      // And we're done!

      // Run our final node as a special case since the above loop won't do it.
      Console.WriteLine("Currently in " + machine.CurrentState);
      machine.CurrentState.Run();

      // Finish off.
      Console.WriteLine("\n\nPress any key to continue.");
      Console.ReadKey(true);
    }

    That is all we need, and we've got the framework for a text-based dungeon explorer game.



    A Boring State Machine

    Just to prove out the above code I created a simple machine. Because it doesn't do anything fun or exciting I called it the BoringMachine.

    Quote

    Remember that a state machine is a CONCEPT. There are many ways to implement it. You can have a machine that points to a collection of objects. You can have a single variable that changes to represent the state. You can use a series of conditional statements. You can use an inheritance tree. The implementation details are up to you.

    In this machine, I chose to make a single state and then caused the state to modify itself as the machine moves around it. This state machine implements the interface I described above, but that interface requires you to state the transition name. In this case, I just ignore the name of the state and advance along a fixed route. Remember that this is just a proof of concept of the state machine runner, it doesn't do anything fancy. It is like the state machine above with states labelled 0, 1, 2, and 3 --- it doesn't look like much yet.

    class BoringMachine : IStateMachine
    {
      BoringMachineState mState = new BoringMachineState();
      public override IState CurrentState
      {
        get
        {
          return mState;
        }
      }

      public override string[] PossibleTransitions()
      {
        // For this simple example, forward it on to the state
        return mState.ListTransitions();
      }

      public override bool Advance(string nextState)
      { Console.WriteLine("I'm a boring state machine. I don't care what you entered. Advancing state.");
       return mState.Advance();
      }

      public override bool IsComplete()
      {
        // For the simple example, forward it on to the state
        return mState.IsComplete();
      }
    }

    class BoringMachineState : IState
    {
      #region Members
        internal enum SameOldStates
        {
          Enter,
          DoStuff,
          Exiting,
          Done
        }

      SameOldStates mState = SameOldStates.Enter;
      #endregion

      #region IState
        overrides public override string GetName()
          {
            return mState.ToString();
          }

          public override void Run()
          {
            // Do nothing. This is the game logic.
          }
      #endregion

      #region Helper functions
        public bool IsComplete()
        {
          return mState == SameOldStates.Done;
        }

        public string[] ListTransitions()
        {
          List result = new List();
          switch (mState)
          {
            case SameOldStates.Enter:
              result.Add("DoStuff");
              break;
            case SameOldStates.DoStuff:
              result.Add("Exiting");
              break;
            case SameOldStates.Exiting:
              result.Add("Done");
              break;
            case SameOldStates.Done:
              result.Add("Done");
              break;
          }

          return result.ToArray();
        }

        public bool Advance()
        {
          switch (mState)
          {
            case SameOldStates.Enter:
              mState = SameOldStates.DoStuff;
              break;
            case SameOldStates.DoStuff:
              mState = SameOldStates.Exiting;
              break;
            case SameOldStates.Exiting:
              mState = SameOldStates.Done;
              break;
            case SameOldStates.Done: // Do nothing.
              break;
          }

          return true;
        }
      #endregion
    }

    At this point, I can feed that machine into the runner and it works. Sometimes that is the biggest accomplishment.



    Let's Make a Game

    Now that I have proved that the state machine runner is up to the task, I create another state machine implementation. This is one of the nice things about writing to an interface: I can create many variations easily. I'll call this one FunMachine. It derives from IState and implements that simple interface. The state machine will represent a map to explore. Each state will represent the room. Here's that code:

    class FunMachineState : IState
    {
      string mName;
      string mDescription;
      List mNeighbors = new List();
      public List Neighbors
      {
        get
        {
          return mNeighbors;
        }
      }

      ///
      /// Initializes a new instance of the FunnerState class.
      ///
      ///Name to display for this state
      ///Text to display for this
      state public FunMachineState(string mName, string mDescription)
      {
        this.mName = mName;
        this.mDescription = mDescription;
      }

      #region IState Overrides
        public override string GetName()
        {
          return mName;
        }

        public override void Run()
        {
          // We don't do any fancy stuff, just print out where we are
          Console.WriteLine();
          Console.WriteLine(mDescription);
        }
      #endregion
    }



    Most of the State Machine

    Remember that we can implement a state machine in many ways.

    In this example, the machine will point to the current state, and during transitions will move to the next state. This source listing is going to include everything EXCEPT the state machine constructor. I'll go over that in more detail in the next section. The machine implements the same IStateMachine interface.

    It also adds three machine-specific values: A list of states, a link to the current state, and a link to the exit state (which we will eventually remove). Two things to note are how it gets the list of possible transitions and how it advances. We look at the names of the current node's neighbors --- in this case, the name of a room on the map. We advance by making sure we can only travel to neighboring rooms. That avoids the exploit of typing "move Exit" and winning the game in the first step.

    class FunMachine : IStateMachine
    {
      List mStates;
      FunMachineState mCurrent;
      FunMachineState mExit;

      /// CONSTRUCTOR NOT SHOWN
      #region IStateMachine Overrides
        public override IState CurrentState
        {
          get
          {
            return mCurrent;
          }
        }

        public override string[] PossibleTransitions()
        {
          List result = new List();
          foreach (FunMachineState state in mCurrent.Neighbors)
          {
            result.Add(state.GetName());
          }

          return result.ToArray();
        }

        public override bool Advance(string nextState)
        {
          foreach (FunMachineState state in mCurrent.Neighbors)
          {
            if (nextState == state.GetName())
            {
              mCurrent = state;
              return true;
            }
          }

          System.Console.WriteLine("Invalid state.");

          return false;
        }

        public override bool IsComplete()
        {
          return mCurrent == mExit;
        }
      #endregion
    }


    Again, this should seem straightforward if you've been following along. We've got the state machine in just a few lines of code.



    On to the Constructor

    This state machine is still hard-coded. In order to generate the maze, we need to manually construct each room (aka FSM state, or vertex, or node). We also need to construct each transition (aka edge) of the state machine.

    public FunMachine()
    {
      // Create all the fun states in our mini-world
      FunMachineState entryHall = new FunMachineState("Grand Entrance", "You are standing in a grand entrance of a castle.\nThere are tables and chairs, but nothing you can interact with.");
      FunMachineState staircase = new FunMachineState("Grand Staircase", "The staircase is made from beautiful granite.");
      FunMachineState eastWing = new FunMachineState("East Wing", "This wing is devoted to bedrooms.");
      FunMachineState westWing = new FunMachineState("West Wing", "This wing is devoted to business.");
      FunMachineState bedroomA = new FunMachineState("Master Suite", "This is the master suite. What a fancy room.");
      FunMachineState bedroomB = new FunMachineState("Prince Bob's Room", "The prince has an extensive library on his wall.\nHe also has more clothes than most males know what to do with.");
      FunMachineState bedroomC = new FunMachineState("Princess Alice's Room", "The princess has filled her room with a small compur lab.\nShe spends her days playing games and writing code.");
      FunMachineState workroomA = new FunMachineState("Study", "This is the study. It has many books.");
      FunMachineState workroomB = new FunMachineState("Bathroom", "Every home needs one");
      FunMachineState workroomC = new FunMachineState("Do Not Enter", "I warned you not to enter.\nYou are in a maze of twisty little passages, all alike.");
      FunMachineState passage = new FunMachineState("Twisty Passage", "You are in a maze of twisty little passages, all alike");
      mExit = new FunMachineState("Outside", "You have successfully exited the castle.");

      // Hook up doors.
      entryHall.Neighbors.Add(staircase);
      entryHall.Neighbors.Add(mExit);
      staircase.Neighbors.Add(eastWing);
      staircase.Neighbors.Add(westWing);
      staircase.Neighbors.Add(entryHall);
      eastWing.Neighbors.Add(bedroomA);
      eastWing.Neighbors.Add(bedroomB);
      eastWing.Neighbors.Add(bedroomC);
      eastWing.Neighbors.Add(staircase);
      bedroomA.Neighbors.Add(eastWing);
      bedroomB.Neighbors.Add(eastWing);
      bedroomC.Neighbors.Add(eastWing);
      westWing.Neighbors.Add(workroomA);
      westWing.Neighbors.Add(workroomB);
      westWing.Neighbors.Add(workroomC);
      workroomA.Neighbors.Add(westWing);
      workroomB.Neighbors.Add(westWing);
      // Trap of doom.
      workroomC.Neighbors.Add(passage);
      passage.Neighbors.Add(passage);

      // Add them to the collection
      mStates = new List();
      mStates.Add(entryHall);
      mStates.Add(staircase);
      mStates.Add(eastWing);
      mStates.Add(westWing);
      mStates.Add(bedroomA);
      mStates.Add(bedroomB);
      mStates.Add(bedroomC);
      mStates.Add(workroomA);
      mStates.Add(workroomB);
      mStates.Add(workroomC);
      mStates.Add(passage);
      mStates.Add(mExit);

      // Finally set my starting point
      mCurrent = entryHall;
    }

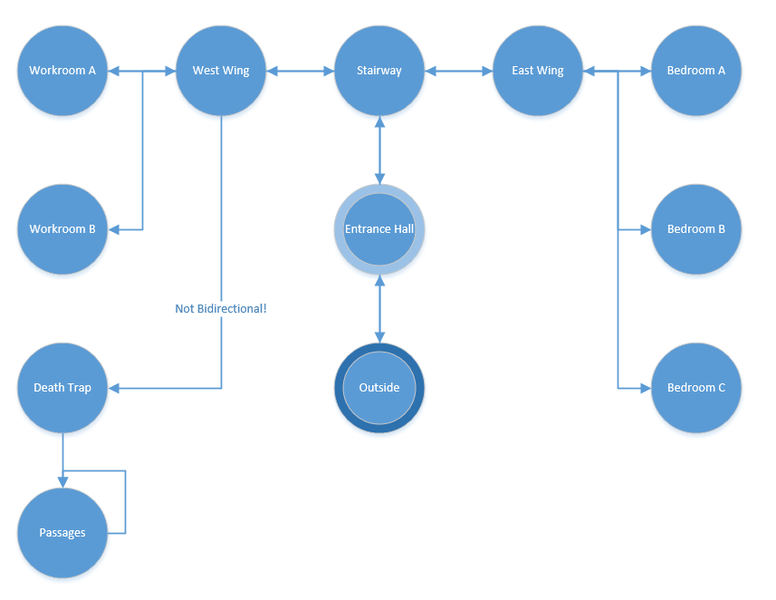

    This creates a fun little graph. In case you're having trouble visualizing it, the picture version looks like this:




    It has rooms. It has a text adventure with a death trap room and a route to victory. It is starting to look like a real game.



    Run the Example Code

    If you haven't gone through the executable yet, now would be a great time to do it. You can explore this little text-based world. It doesn't have a plot, it doesn't have inventory items or any action other than moving, but it demonstrates a part of the game.



    Making it Data Driven

    That term shows up a lot in games: Data Driven.

    What does it mean? So far if I wanted to make changes I needed to modify the source code, recompile, and test the app. For a small castle map and a single developer, this is not a hard thing. But what happens when the app grows?

    Let's imagine I hire someone to design my levels. That person is not a programmer. I don't want them touching my C# files, and I don't want to teach them to read and write C#. So what should I do?

    Simple: I create a save file that contains all the information describing the level. I can allow non-programmers to work on my game by loading data at runtime. Data-driven means level designers can modify rooms, put different things in different locations, and otherwise improve the game without touching the code. It means another programmer can implement game objects like ropes and bottles and water without touching the game code. It means that if we were making a graphical game, artists could create new art, modellers could create new models, and animators could modify animations, all without touching the code. Data-driven means that only programmers need to touch the code. Everyone else uses data to modify the game. Fancy engines will implement ways to reload data while the game is running. Designers and artists and animators and modellers can iterate on their work much faster, potentially saving months of development time.



    Making My Dungeon Data Driven

    The states are only slightly modified from last time. Last time I stored the state's name, description, and neighbors.

    This time I add a unique name key and a set of flags. The flags indicate if the node is the Enter node (there is only one) or if the node is an exit node. Next I added the functions ReadXml and WriteXml. These two functions save and load my five elements (unique name, flags, visible name, description, and neighbors) into an XML file. Because it is basically free I chose to implement them using the IXmlSerializable interface. Someday when I'm feeling ambitious I can extend future components to also use the C# serialization routines to automatically handle my data. Since the state machine will need to create these objects from XML, I create a second constructor that takes an XmlReader and pass that on to the ReadXml function.

    Finally, I added some accessors and mutators (get and set functions) to help out the state machine.


    public class SavedMachineState : IState, IXmlSerializable
    {
      #region Members [Flags]
        public enum StateFlags
        {
          None = 0,
          Enter = 1,
          Exit = 2,
        }

        public string mKey;
        StateFlags mFlags;
        string mName;
        string mDescription;
        List mNeighbors = new List();
        public List Neighbors
        {
          get
          {
            return mNeighbors;
          }
        }
      #endregion

      #region Constructors
        ///
        /// Manual constructor for default maze
        ///
        ///unique name for the stateFlags
        ///flags to indicate enter nodes and exit nodes
        ///name to show to the user
        ///text to show for the description
        ///unique keys for neighboring rooms, seperated by commas and not spaces
        public SavedMachineState(string uniqueKey, StateFlags flags, string name, string description, string neighbors)
        {
          mKey = uniqueKey;
          mFlags = flags;
          mName = name;
          mDescription = description;
          mNeighbors.AddRange(neighbors.Split(','));
        }

        ///
        /// Constructor to create an object from a save file
        ///
        ///xml stream to read from
        public SavedMachineState(XmlReader reader)
        {
          ReadXml(reader);
        }
      #endregion

      #region Helper Functions
        public bool IsStartState
        {
          get
          {
            return (mFlags & StateFlags.Enter) != StateFlags.None;
          }
        }

        public bool IsExitState
        {
          get
          {
            return (mFlags & StateFlags.Exit) != StateFlags.None;
          }
        }

        public string Key
        {
          get
          {
            return mKey;
          }
        }

        public bool IsMyName(string nameToTest)
        {
          //TODO: Add shortcuts to names. For example, allow "Great Hall", "Hall", etc.
          if (nameToTest.ToLower() == mName.ToLower()) return true;
          if (nameToTest.ToLower() == mKey.ToLower()) return true;
          return false;
        }
      #endregion

      #region IState Overrides
        public override string GetName()
        {
          return mName;
        }

        public override void Run()
        {
          // We don't do any fancy stuff, just print out where we are
          Console.WriteLine();
          Console.WriteLine(mDescription);
        }
      #endregion

      #region IXmlSerializable Members
        public System.Xml.Schema.XmlSchema GetSchema()
        {
          return null;
        }

        public void ReadXml(System.Xml.XmlReader reader)
        {
          reader.ReadStartElement(); mKey = reader.ReadElementContentAsString("UniqueName","");
          string flagString = reader.ReadElementContentAsString("Flags","");
          mFlags = (StateFlags)Enum.Parse(typeof(StateFlags), flagString);
          mName = reader.ReadElementContentAsString("VisibleName", "");
          mDescription = reader.ReadElementContentAsString("Description", "");
          string neighborsString = reader.ReadElementContentAsString("Neighbors", "");
          mNeighbors.AddRange(neighborsString.Split(','));
          reader.ReadEndElement();
        }

        public void WriteXml(System.Xml.XmlWriter writer)
        {
          writer.WriteElementString("UniqueName", mKey);
          writer.WriteElementString("Flags", mFlags.ToString());
          writer.WriteElementString("VisibleName", mName);
          writer.WriteElementString("Description", mDescription);
          string neighbors = String.Join(",",Neighbors.ToArray());
          writer.WriteElementString("Neighbors",neighbors);
        }
      #endregion
    }



    If that was the first exposure to the code it might be a little intimidating. But since we've been slowly adding to it over time, you should see that it is only a minor incremental change.





    State Machine Changes

    Changes to the state machine were a little more dramatic. The exit node information is now contained in the data, so I can drop the mExit state I mentioned earlier. For convenience, I moved the map construction code from a constructor to its own function: GenerateDefaultMap(). It allows us to generate and save a map when bootstrapping the toolchain. The constructor calls ImportFromXml() instead. If that fails we generate the default map, save a copy with ExportToXML(), and then reload our newly created map. ExportToXML() creates an XML writer, loops through the states, and writes each state out using the WriteXml() function. ImportFromXML() creates an XML reader and reads the file in through the corresponding ReadXml() function.

    Here's the modified code:


    public class SavedMachine : IStateMachine, IXmlSerializable
    {
      #region Members List
        mStates = new List();
        SavedMachineState mCurrent;
      #endregion

      #region Constructor
        ///
        /// Initializes a new instance of the FunnerMachine class.
        ///
        public SavedMachine()
        {
          try
          {
            ImportFromXML();
          }
          catch (Exception ex)
          {
            mStates.Clear();
          }

          if (mStates.Count == 0)
          {
            GenerateDefaultMap();
            ImportFromXML();
          }

          // Find the entry state
          for (int i = 0; i < mStates.Count; i++)
          {
            if (mStates.IsStartState)
            {
              mCurrent = mStates;
              break;
            }
          }
          if (mCurrent == null)
          {
            Console.WriteLine("\n\nERROR! NO ENTRY STATE DEFINED.");
            throw new Exception("No entry state defined in this state machine. Cannot continue.");
          }
        }
      #endregion

      #region Helper Functions
        private void GenerateDefaultMap()
        {
          mStates.Clear();

          // Create all the fun states in our mini-world
          mStates.Add(new SavedMachineState("entryHall", SavedMachineState.StateFlags.Enter, "Grand Entrance", "You are standing in a grand enterance of a castle.\nThere are tables and chairs, but nothing you can interact with.", "staircase,outside"));
          mStates.Add(new SavedMachineState("staircase", SavedMachineState.StateFlags.None, "Grand Staircase", "The staircase is made from beautiful granite.", "eastWing,westWing,entryHall"));
          mStates.Add(new SavedMachineState("eastWing", SavedMachineState.StateFlags.None, "East Wing", "This wing is devoted to bedrooms.", "bedroomA,bedroomB,bedroomC,staircase"));
          mStates.Add(new SavedMachineState("westWing", SavedMachineState.StateFlags.None, "West Wing", "This wing is devoted to business.", "workroomA,workroomB,workroomC"));
          mStates.Add(new SavedMachineState("bedroomA", SavedMachineState.StateFlags.None, "Master Suite", "This is the master suite. What a fancy room.", "eastWing"));
          mStates.Add(new SavedMachineState("bedroomB", SavedMachineState.StateFlags.None, "Prince Bob's Room", "The prince has an extensive library on his wall.\nHe also has more clothes than most males know what to do with.", "eastWing"));
          mStates.Add(new SavedMachineState("bedroomC", SavedMachineState.StateFlags.None, "Princess Alice's Room", "The princess has filled her room with a small compur lab.\nShe spends her days playing games and writing code.", "eastWing"));
          mStates.Add(new SavedMachineState("workroomA", SavedMachineState.StateFlags.None, "Study", "This is the study. It has many books.", "westWing"));
          mStates.Add(new SavedMachineState("workroomB", SavedMachineState.StateFlags.None, "Bathroom", "Every home needs one", "westWing"));
          mStates.Add(new SavedMachineState("workroomC", SavedMachineState.StateFlags.None, "Do Not Enter", "I warned you not to enter.\nYou are in a maze of twisty little passages, all alike.", "passage"));
          mStates.Add(new SavedMachineState("passage", SavedMachineState.StateFlags.None, "Twisty Passage", "You are in a maze of twisty little passages, all alike", "passage"));
          mStates.Add(new SavedMachineState("outside", SavedMachineState.StateFlags.Exit, "Outside", "You have successfully exited the castle.", ""));

          ExportToXML();
        }

        public void ExportToXML()
        {
          XmlWriterSettings settings = new XmlWriterSettings();
          settings.Indent = true;
          settings.OmitXmlDeclaration = true;
          settings.NewLineHandling = NewLineHandling.Entitize;
          using (XmlWriter writer = XmlWriter.Create("GameRooms.xml",settings))
          {
            writer.WriteStartDocument();
            writer.WriteStartElement("SavedMachine");
            WriteXml(writer);
            writer.WriteEndElement();
            writer.WriteEndDocument();
          }
        }

        public void ImportFromXML()
        {
          XmlReaderSettings settings = new XmlReaderSettings();
          settings.IgnoreWhitespace = true;
          XmlReader reader = XmlReader.Create("GameRooms.xml", settings);
          ReadXml(reader);
        }

      #endregion

      #region IStateMachine Overrides
        public override IState CurrentState
        {
          get
          {
            return mCurrent;
          }
        }

        public override string[] PossibleTransitions()
        {
          List result = new List();
          foreach (string state in mCurrent.Neighbors)
          {
            result.Add(state);
          }

          return result.ToArray();
        }

        public override bool Advance(string nextState)
          {
            foreach (SavedMachineState state in mStates)
            {
              if(state.IsMyName(nextState) && mCurrent.Neighbors.Contains(state.Key))
              {
                mCurrent = state;
                return true;
              }
            }

            System.Console.WriteLine("Cannot do that.");
            return false;
        }

        public override bool IsComplete()
        {
          return mCurrent.IsExitState;
        }
      #endregion

      #region IXmlSerializable Members
        public System.Xml.Schema.XmlSchema GetSchema()
        {
          return null;
        }

        public void ReadXml(XmlReader reader)
        {
          bool isEmpty = reader.IsEmptyElement;
          reader.ReadStartElement();
          if (isEmpty) return;
          while (reader.NodeType == XmlNodeType.Element)
          {
            if (reader.Name == "Room")
            {
              mStates.Add(new SavedMachineState(reader));
            }
            else
              throw new XmlException("Unexpected node: " + reader.Name);
            }

          reader.ReadEndElement();
        }

        public void WriteXml(XmlWriter writer)
        {
          foreach (SavedMachineState state in mStates)
          {
            writer.WriteStartElement("Room");
            state.WriteXml(writer);
            writer.WriteEndElement();
          }
        }
      #endregion
    }

    Not too bad for an incremental change.





    Run the Game and Generate Bootstrap Data

    Now when I run the game it attempts to load the save file. It cannot find one so it generates a new GameRooms.xml data file. Then it plays the same dungeon explorer code as before. Since I am bootstrapping my tools, I need to jump straight into the generated xml:

    entryHall
      Enter
      Grand Entrance
      You are standing in a grand enterance of a castle.
      There are tables and chairs, but nothing you can interact with.
      staircase,outside

    staircase
      None
      Grand
      Staircase
      The staircase is made from beautiful granite.
      eastWing,westWing,entryHall

    eastWing
      None
      East Wing
      This wing is devoted to bedrooms.
      bedroomA,bedroomB,bedroomC,staircase

    westWing
      None
      West Wing
      This wing is devoted to business.
      workroomA,workroomB,workroomC

    bedroomA
      None
      Master Suite
      This is the master suite. What a fancy room.
      eastWing

    bedroomB
      None
      Prince Bob's Room
      The prince has an extensive library on his wall. He also has more clothes than most males know what to do with.
      eastWing

    bedroomC
      None
      Princess Alice's Room
      The princess has filled her room with a small compur lab. She spends her days playing games and writing code.
      eastWing

    workroomA
      None
      Study
      This is the study. It has many books.
      westWing

    workroomB
      None
      Bathroom
      Every home needs one
      westWing

    workroomC
      None
      Do Not Enter
      I warned you not to enter. You are in a maze of twisty little passages, all alike.
      passage

    passage
      None
      Twisty Passage
      You are in a maze of twisty little passages, all alike
      passage

    outside
      Exit
      Outside
      You have successfully exited the castle.



    I can look it over and verify that it is our original map, saved out in XML format. To prove that the system actually works, we can make some minor modifications to the map: FSM_BiggerMap.png



    This requires a tiny modification to the entrance hall (pointing the neighbor to 'courtyard') and making three new rooms. A few seconds in a text editor, copy/paste, a little wordsmithing, and I get this addition to the save file:

    courtyard
      None
      Courtyard
      The courtyard is decorated with many large trees and several marble benches.
      entryHall,townGate

    townGate
      None
      Town Gate
      You arrive at the gate of the town. Ahh, to be home again.\n\nNOTICE: The guards will not let you return to the castle if you leave.
      courtyard,village

    village
      Exit
      Quaint Village
      You return to your village. You won't soon forget your experiences in the castle.

    I fire up the game, and can quickly verify that I have altered the map just by changing data. Someone could now write a simple tool that allows a map designer to visualize dungeons. Or they could just let the map designer work with the raw XML files. Either way, the map is now data driven --- it can be modified entirely by data without any work from the programmer.



    Always Room for Improvement

    There are many more things we could do with this simple example. The first thing I would do is create objects that can be placed in rooms. These are simple state machines in themselves. For example, I could have a bucket object that has several states: Empty, Water, WaterAndFish. Events could be added (again with a simple state machine) that tracks your progress through a quest and grants points as you complete objectives. Those are nice things to have in a game, but in this case, they don't add anything beyond what was just demonstrated. That can be left as an exercise for the reader.



    A More Complex Set of Machines

    Let's move on to a more complex topic. Every game I've worked on has used an AI system of some form. There are actors and objects, and the actors do something. Often the actors use objects. For this demo, I created the following structure:


    The game container is a playing field. It contains a collection of GameObject instances. The playing field gets regular updates at about 30 frames per second, and each update gets passed along to the individual objects. There are two types of game objects: Pets and Toys. These to objects work together using activities. Now to go over each of these in detail.



    The Base GameObject Class

    A game object fits in with the state machines. They serve as both state machines AND as state nodes. Remember from earlier that a state machine is a concept. The implementation details don't matter when the concept is intact. It has an Update(), which means to run the current state, and also to advance the current state if necessary. We'll expand on this a little later. The GameObject represents any object we can place on our game board. They have an owner (in this case, the playing field). They have a location. They have an image. For convenience they have a ToString() override that makes things look nicer when I view them in a property grid. Also during development, they have evolved to have a PushToward() and a MaxSpeed() method. These would probably be integrated into a physics system or a collision system, but for now, this is their best natural fit.

    public abstract class GameObject { public PlayingField Owner { get; set; } ///

     /// Initializes a new instance of the GameObject class. ///
     public GameObject(PlayingField owner) { Owner = owner; } ///

     /// Update the object ///
     ///seconds since last update. /// seconds is the easiest scale for the individual settings public abstract void Update(float seconds); ///

     /// Location on the playing field to draw the actor
     ///
     public PointF Location { get; set; }

     ///
     /// What to draw on the playing field
     ///
     public abstract Image Image { get; }

     ///
     /// Push the game object toward a location. Default behavior is to not move.
     ///
     ///Location to push toward
     ///Seconds that have passed in this movement
     public virtual void PushToward(PointF destination, float seconds) { return; }

     ///
     /// Get the maximim speed of this game object. Default behavior is not to move.
     ///
     ///
     public virtual float MaxSpeed() { return 0; }

     ///
     /// Simplified name for the object to display in the property browser
     ///
     /// Shorter name
     public override string ToString()
     {
       string classname = base.ToString();
       int index = classname.LastIndexOf('.');
       string shortname = classname.Substring(index+1);

       return shortname;
     }
    }



    All game objects need to implement the interface.

    Pets and Motives

    The basic pet class is pretty simple. A pet is a game object (so it gets everything above), plus it also gets an activity and a collection of motives. The motives are nothing more than a wrapper for the pet's status. In this case, we are only tracking fun and energy. (Note for comparison in The Sims3 there are 8 visible motives - hunger, social, bladder, hygiene, energy, and fun.) When a pet is created we default them to the Idle activity and initialize their Motives. We have a default update behavior to run whatever activity we are currently doing, or if we aren't doing anything to create a new idle activity and do that instead. We'll also implement what it means to push a pet.


    public class MotiveBase
    {
      public float Fun
      {
        get;
        set;
      }

      public float Energy
      {
        get;
        set;
      }
    }

    public abstract class Pet : GameObject
    {
      public MotiveBase Motives
      {
        get;
        set;
      }

      public Activities.Activity Activity
      {
        get;
        set;
      }

      ///
      /// Initializes a new instance of the Pet class.
      ///
      public Pet(PlayingField owner) : base(owner)
      {
        Activity = new Activities.Idle(this, null);
        Motives = new MotiveBase();
      }

      ///
      /// Allow a pet to do something custom on their update
      ///
      ///
      protected virtual void OnUpdate(float seconds)
      {
        return;
      }

      public override void Update(float seconds)
      {
        if (Activity == null)
        {
          Activity = new Activities.Idle(this, null);
        }

        Activity.Update(seconds);
      }

      public override void PushToward(System.Drawing.PointF destination, float seconds)
      {
        base.PushToward(destination, seconds);
        // TODO: Someday accumulate force and make a physics system. Just bump it the correct direction.
        // TODO: Create a vector class someday
        float xDiff = destination.X - Location.X;
        float yDiff = destination.Y - Location.Y;
        float magnitude = (float)Math.Sqrt(xDiff * xDiff) + (float)Math.Sqrt(yDiff * yDiff);

        if (magnitude > (MaxSpeed() * seconds))
        {
          float scale = (MaxSpeed() * seconds) / magnitude; xDiff *= scale;
          yDiff *= scale;
        }

        Location = new PointF(xDiff + Location.X, yDiff + Location.Y);
      }
    }

    There are a few TODO: markers in the code, but the interface work. Remember the Dependency Inversion Principle mentioned before: Program against an interface or abstract base class, don't program against the individual concrete classes.

    Puppies!

    Finally, we get to create a concrete class. A puppy. Note that we're just pulling the values from saved resources so a designer and artist can modify them later.

    class Puppy : Pet
    {
      ///
      /// Initializes a new instance of the GameObject class.
      ///
      public Puppy(PlayingField owner) : base(owner)
      {
      }

      public override System.Drawing.Image Image
      {
        get
        {
          return FSM_Puppies.Properties.Resources.Puppy;
        }
      }

      public override float MaxSpeed()
      {
        return FSM_Puppies.Properties.Settings.Default.Pet_Puppy_MaxSpeed;
      }
    }

    Yup, all that work and we only get a tiny little concrete class. That is actually a very good thing. It means that when we want to extend it later for different kinds of puppies, kitties, horses, and other pets, we only need to add a tiny bit of code to hook up the new actors with their new data.



    Toys

    A toy is also a game object, so it can behave as a state machine and as a state node, as appropriate. A toy has a default activity associated with it. When a pet attempts to use a toy they will get this default activity (aka behavior tree) and start running it. A toy is also responsible for computing the interest level in the object. For now, these will just be hard-coded formulas inside each toy object. Later on, these could be a more complex series of interactions but for this system it is adequate. Here's the Toy abstract class:

    public abstract class Toy : GameObject
    {
      ///
      /// Initializes a new instance of the Toy class.
      ///
      public Toy(PlayingField owner) : base(owner)
      {
      }

      public abstract Activities.Activity DefaultActivity(Pets.Pet actor, GameObject target);
      public abstract float Interest(Pets.Pet pet);

      public override void Update(float seconds)
      {
        // Note that most toys do nothing of themselves. They are driven by their activities.
        return;
      }
    }



    Two Toys

    Now we'll create two concrete classes for toys. First, a sleeping mat. The interest of the sleeping mat is only based on energy. It has an image to draw. The default activity is to sleep on the mat.


    class SleepingMat : Toy
    {
      ///
      /// Initializes a new instance of the SleepingMat class.
      ///
      public SleepingMat(PlayingField owner) : base(owner)
      {
      }

      public override FSM_Puppies.Game.Activities.Activity DefaultActivity(Pets.Pet actor, GameObject target)
      {
        return new Activities.SleepOnMat(actor, this);
      }

      public override System.Drawing.Image Image
      {
        get
        {
          return FSM_Puppies.Properties.Resources.SleepingMat;
        }
      }

      public override float Interest(FSM_Puppies.Game.Pets.Pet pet)
      {
        return MaxEnergy() - pet.Motives.Energy;
      }
    }



    Second, a ball to kick around. The interest is only based on fun, although it probably should include an energy component. It has an image to draw, and the default activity is to chase the ball.

    class Ball : Toy
    {
      ///
      /// Initializes a new instance of the Ball class.
      ///
      public Ball(PlayingField owner) : base(owner)
      {
      }

      public override Image Image
      {
        get
        {
          return FSM_Puppies.Properties.Resources.Ball;
        }
      }

      public override Activities.Activity DefaultActivity(Pets.Pet actor, GameObject target)
      {
        return new Activities.ChaseBall(actor, target);
      }

      public override float Interest(FSM_Puppies.Game.Pets.Pet pet)
      {
        return MaxFun() - pet.Motives.Fun;
      }
    }

    Now we move on to the activities that drive the system.



    Activities Are Both Glue and Oil



    Activities serve as glue to the system. They are the interactions between actors and objects. Without them there wouldn't be much of a connection between the two. Activities also serve as the oil that keeps the parts moving smoothly. They are constantly moving. They change themselves, and they change the actors they work with, and they can change the objects they work with. A more complex example of a food bowl could change the actor by modifying hunger, and also change the target by reducing the amount of food in the bowl.

    So here is our activity base class. An activity has an Actor and a Target. I intentionally limited Actors to be pets. I could have allowed any object to interact with any object, but that doesn't quite make sense in practice. We don't really want a food bowl to interact with a chew toy, or a ball to interact with a sleeping mat. We DO want to allow a pet to be a target allowing default activities to play social events. For example, pets could dance together or sniff each other or do whatever groups of pets do together. We allow an Update event on the activity base. This update is run by the pet earlier. We pass that on through the OnUpdate callback in each activity. If the activity returns true then we know it is complete and the pet needs to find something new to do.

    Finally, we have a magical function, FindBestActivity() that needs to live somewhere in the code. I could have created another class for it, but for now, this is the best spot.  This FindBestActivity is the magic that makes the AI do fun things. In this example, it is only 35 lines. We loop over all the toys in the game world and see how interesting they are. Then we take the best interaction and return a new instance of it. If we fail we just return the idle activity. For a game like The Sims, there are potentially tens of thousands of objects to choose from, and each object can have many activities associated with it. Finding the best activity among them all is a complex job. The theory behind it is no different: Find the best activity, and create an instance of it.

    public abstract class Activity
    {
      public Pets.Pet Actor
      {
        get;
        set;
      }

      public GameObject Target
      {
        get;
        set;
      }

      ///
      /// Initializes a new instance of the Activity class.
      ///
      public Activity(Pets.Pet actor, GameObject target)
      {
        Actor = actor;
        Target = target;
      }

      ///
      /// Update this activity state
      ///
      /// elapsed time
      /// true if the activity is complete
      public abstract bool OnUpdate( float seconds );

      ///
      /// Update this activity state
      ///
      /// elapsed time
      public void Update(float seconds)
      {
        if(OnUpdate(seconds))
        {
          Actor.Activity = new Idle(Actor, null);
        }
      }

      ///
      /// Utility function to locate the best next activity for the actor.
      ///
      ///
      public static Activity FindBestActivity(Pets.Pet actor)
      {
        // Look for a toy to play with...
        if (actor.Owner != null && actor.Owner.GameObjects != null)
        {
          List candidates = new List();
          foreach (GameObject obj in actor.Owner.GameObjects)
          {
            Toys.Toy t = obj as Toys.Toy;
            if (t != null)
            {
              candidates.Add(t);
            }
          }
          if (candidates.Count > 0)
          {
            float bestScore = float.MinValue;
            Toys.Toy bestToy = null;
            foreach (Toys.Toy t in candidates)
            {
              float myscore = t.Interest(actor);
              if(myscore>bestScore)
              {
                bestScore = myscore;
                bestToy = t;
              }
            }

            return bestToy.DefaultActivity(actor, bestToy);
          }
        }

        return new Idle(actor, null);
      }

      public override string ToString()
      {
        string classname = base.ToString();
        int index = classname.LastIndexOf('.');
        string shortname = classname.Substring(index + 1);
        return shortname;
      }
    }

    Now we know what an activity is. Basically just another state machine.



    Idle Activity

    We'll start with the idle activity. It has an idle time. After enough time has passed we look for something new to do. This new activity will replace our current idle activity. If we don't find anything interesting to do we can just sit there, slowly dropping our fun and our energy. Since this is C# we don't need to schedule cleanup and deletion of our own idle activity which simplifies our code quite a lot.

    class Idle : Activity
    {
      float mTimeInIdle = 0;
      public Idle(Pets.Pet actor, GameObject target) : base(actor, target)
      {
      }

      public override bool OnUpdate(float seconds)
      {
        mTimeInIdle += seconds;
        if (mTimeInIdle >= FSM_Puppies.Properties.Settings.Default.Activity_Idle_WaitingTime)
        {
          Actor.Activity = FindBestActivity(Actor);
        }

        // Sitting there idle isn't much fun and slowly decays energy. This encourages us to pick up other activiites.
        Actor.Motives.Fun += FSM_Puppies.Properties.Settings.Default.Activity_Idle_Fun * seconds;
        Actor.Motives.Energy += FSM_Puppies.Properties.Settings.Default.Activity_Idle_Energy * seconds;
        // Always return false because idle is never finished. It auto-replaces if it can find something.
        return false;
      }
    }



    ChaseBall Activity

    This is actually TWO activities. It is a miniature state machine within itself. Chasing a ball has one component "RunToObject", and then a second component where they actually kick the ball. It isn't a difficult state machine, just two states, and can be represented directly with a simple if statement. That is a good time for this reminder:

    Quote

    REMINDER: A state machine is a CONCEPT. It can be implemented many different ways. Even a simple if statement can implement the concept of a state machine.

    So every update we attempt to run to the ball object. If we succeeded in running to the object, we kick the ball a random distance. We also bump fun a little bit whenever they kick the ball. An activity's return result indicates when it is complete. We'll return true only when our fun is maxed out. We might want to have a second exit condition when energy runs low, but that is for later.

    class ChaseBall : Activity
    {
      RunToObject mRto;

      ///
      /// Initializes a new instance of the ChaseBall class.
      ///
      public ChaseBall(Pets.Pet actor, GameObject target) : base(actor, target)
      {
        mRto = new RunToObject(actor, target);
      }

      public override bool OnUpdate(float seconds)
      {
        // When they kick the ball, move it to a new location and continue our activity.
        if( mRto.OnUpdate(seconds))
        {
          float kickDistance = FSM_Puppies.Properties.Settings.Default.Activity_ChaseBall_KickDistance;
          // Get a random number with +/- kick distance
          float newX = Target.Location.X + (((float)Target.Owner.Rng.NextDouble()*(2*kickDistance))-kickDistance);
          float newY = Target.Location.Y + (((float)Target.Owner.Rng.NextDouble()*(2*kickDistance))-kickDistance);
          PointF randomLocation = new PointF(newX,newY);
          Target.Location = randomLocation;
          Actor.Motives.Fun += FSM_Puppies.Properties.Settings.Default.Toy_Ball_Fun;
          if(Actor.Motives.Fun > 100) return true;
        }
        return false;
      }
    }



    RunToObject Activity

    Next, we'll look at how they run to an object. It is pretty simple. If we are close enough (another designer-adjustable value) then they have made it to the object and we return true. If they are not there yet we push them toward the object, drop their energy, and return false (we aren't done with the activity yet).

    class RunToObject : Activity
    {
      ///
      /// Initializes a new instance of the RunToObject class.
      ///
      public RunToObject(Pets.Pet actor, GameObject target) : base(actor, target)
      {
      }

      public override bool OnUpdate(float seconds)
      {
        // Are we there yet?
        // And why didn't PointF implement operator-() ?
        PointF offset = new PointF( Target.Location.X - Actor.Location.X, Target.Location.Y - Actor.Location.Y);
        float distanceSquared = offset.X * offset.X + offset.Y * offset.Y; float closeEnough = FSM_Puppies.Properties.Settings.Default.Activity_RunToObject_CloseEnough;
        float closeEnoughSquared = closeEnough * closeEnough;
        if (distanceSquared < closeEnoughSquared) return true;
        Actor.PushToward(Target.Location, seconds);
        Actor.Motives.Energy += FSM_Puppies.Properties.Settings.Default.Activity_RunToObject_Energy * seconds;
        return false;
      }
    }



    Sleeping On the Mat

    Just like chasing a ball, we start out by running to the object. So first we call RunToObject. If it succeeds (meaning we finally got there), then we start resting. We bump the motives, return true or false based on our energy status.

    class SleepOnMat : Activity
    {
      RunToObject mRto;
      ///
      /// Initializes a new instance of the SleepOnMat class.
      ///
      public SleepOnMat(Pets.Pet actor, GameObject target) : base(actor, target)
      {
        mRto = new RunToObject(actor, target);
      }

      public override bool OnUpdate(float seconds)
      {
        // Route to the sleeping mat
        if(mRto.OnUpdate(seconds))
        {
          // Now that we are on the mat, just sit here and increase our motives.
          Actor.Motives.Energy += FSM_Puppies.Properties.Settings.Default.Toy_SleepingMat_Energy;
          Actor.Motives.Fun += FSM_Puppies.Properties.Settings.Default.Toy_SleepingMat_Fun;
          if (Actor.Motives.Energy > 100) return true;
        }
        return false;
      }
    }



    Proof of Concept is Complete

    And... we're done. Go ahead and play with the sample now. Drop multiple play mats, multiple balls, and multiple puppies. Watch them run around chasing balls, and when they get tired watch them run over and sleep on the mat. Pick them from the list on the left-hand pane to view details in the little property grid. It is not much, but it is enough to see a sandbox game starting to grow. I showed my children and they immediately made a list of new objects to add. Add a kitty! Add a teeter-totter! Add a tetherball! (Really?) Repeat this around thirty times with new objects, add a few motives, and you can have your own self-running simulated pet world. Focus on a few of them to create minigames, and drop some spawn points in the world. Repeat until the game is complete.



    But I Wanted a First Person Shooter

    That is solved very easily: Rename "Pets" to "Monsters", and "Puppy" to "Grunt". Rename "Toys" to "WayPoint", "Ball" to "Flamethrower", and "SleepingMat" to "SpawnPoint". Finally, rename activities as appropriate.



    Wrapping It Up

    So we learned that state machines are the least powerful of the automata in computer science. We also learned that they are used everywhere in our daily lives, and can do incredible things for games. We can use state machines to run different code based on state. We can use state machines to represent arbitrary meshes. These meshes can include things like maps and connectivity grids. We don't need to hard code the state machines. When you load them from data you can get substantially more use out of them. Designers and artists and modellers and animators and producers can all modify the game without touching the code. We can build complex systems such as AI behavior trees out of a nested tree of very simple state machines.



    How Else Can I Apply This

    Most games apply these concepts all over the place. One of the most common jobs in the industry is Gameplay Engineer, or GPE. All they do is create the exact types of items we have made in this series of tutorials.



    For example, in Littlest PetShop I spent months adding new behaviors and actions. They ranged from 'in the world' behaviors like those above to minigames such as hide and seek where pets would run behind bushes to hide, then run up to the camera and celebrate with the player when they were found. In The Sims every one of the tens of thousands of objects in the game required scripting. You need a pile of clothes, then you need some of these scripts: Behaviors and interactions to create the piles of clothes; interactions to drop the piles of clothes and pick them up again; interactions for a washing machine; interactions for a dryer; interactions for the maid to come clean up; and on and on and on. Or if you are into faced paced games, you need behaviors and actions for your main characters to know to attack or run away, or decide if they should attack towers or players or minions. You need to create objects to pick up, weapons, inventories, and more. All of these behave the same way that we demonstrated above. It uses a common interface for objects, and the programmer fills out the details. These little activities and behaviors grow into complex ecosystems powering most games.



    So there you go. A text-based dungeon crawler prototype and a sandbox world prototype, both filled with state machines and written in just a few hours. Creating objects and behaviors like this describes the daily life of a gameplay engineer. Chances are good that if you get a programming career in the industry you will spend a few years of your life writing code much like that above. Remembering that it is a simple state machine can help avoid many nasty bugs and can simplify your life greatly.



    Thanks for reading.



    Source code can be found here: StateMachineTutorialsV5.zip


    Updates: 2013-03-26 Fix a typo in the map images.

    [Wayback Machine Archive]



      Report Article


    User Feedback


    Love the article. Probably should change "Death Drap" in your images to "Death Trap". ;)

    Thanks.  Typo fixed.

    Share this comment


    Link to comment
    Share on other sites

    Thanks, I learned a lot from here. I decided to use it for myself so I made an XNA port for the code. I've uploaded it to a GitHub repo if anyone wants to use it.

    Share this comment


    Link to comment
    Share on other sites

    Great tutorial ! I would gladly upvote it twice just for the introduction to the data-driven programming.

    Share this comment


    Link to comment
    Share on other sites


    Create an account or sign in to comment

    You need to be a member in order to leave a comment

    Create an account

    Sign up for a new account in our community. It's easy!

    Register a new account

    Sign in

    Already have an account? Sign in here.

    Sign In Now

  • Advertisement
  • Game Developer Survey


    We are looking for qualified game developers to participate in a 10-minute online survey. Qualified participants will be offered a $15 incentive for your time and insights. Click here to start!

    Take me to the survey!

  • Advertisement
  • Latest Featured Articles

  • Featured Blogs

  • Advertisement
  • Popular Now

  • Similar Content

    • By Danzabarr
      My question is about OOP, and best practice writing in C# for Unity.
      Say I'm writing components for an item system.

      Consumables have quantity.
      Weapons have durability, damage, block and stats.
      Armour has durability, armour and stats.
      Shield has durability, block, armour and stats.

      In this situation, should I...
      write a Consumable component, Weapon component, Shield component and Armour component that each extend an Item class? write a Quantity component, Durability component, Damage component, Block component, Armour component and Stats component, then add as required? write an Item component with all the possible fields plus an enum that decides which ones go unused? I like 1) because it defines the items by what they do, but there's repetition of fields horizontally in the inheritance tree.
      I like 2) because there's no repetition, but it allows for the creation of items that don't make sense. There's no strict definition going on, just the existence or non-existence of components, and some might need to be mutually exclusive.
      I like 3) because it's the solution to the problem with 1), and the enum is kind of a solution to the problem with 2), but it seems wasteful to deal with a larger data structure than required for every item.
      Any thoughts?
    • By rogerdv
      Some weeks ago I was asking how to fill a fixed byte[] array with values (floats, ints, etc). Now I need the opposite: I have to parse that array, received from the client, into values. Seems that BitConverter cant accept fixed byte[] as parameter, how can I convert it to something usable bit BitConverter?

    • By Ruben Torres
      [The original post was published with its original formatting in The Gamedev Guru's Blog]
      Heya, Unity Addressables fan.
      Last week, I posted a short but powerful article detailing three ways Unity Addressables can help you developing better games. The article was very well received, thanks for your active participation.

      Just at the end of that post, you were given the chance to test your knowledge in Unity Addressables through a short quiz.

      The goal I had in mind when creating the quiz was to help you become aware of the areas you might be less familiar with, so you can get to develop your skills where you need the most.
      I'll confess that, initially, I didn't expect many people to go through the quiz. After all, quizzes can be daunting and, as usual, there's this extra babbling coming from me.
      But to my surprise, the quiz results well outperformed my expectations. I'm really happy to see that so many people accepted the challenge. You all rock!
      I got some interesting statistics out of the quiz. Here are some figures I wanted to share with you:
      The greatest part of the people who started it, about 80%, actually were determined enough to finish it The average score was about 12, which is pretty damn good for an API that was only introduced recently Less than 5% of the quiz participants fell in the Troll Guru rank About 50% are part of the Apprentice Guru group Over 40% of the participants scored enough to be Enlightened Gurus But only 5% made it to be considered The Final Boss Guru So, congratulations if you were part of the quiz experience!
      And independently from the score you got, I am sure it will not take you much effort to reach the production-level required score of 20+. I'll be helping you along the path.

      In this post, I will explain the most interesting challenges posed in the quiz. Some answers might differ depending on your particular context, so make sure to comment at the end of the post if you had a complementary experience.

      If you didn't complete the quiz before, do it now before reading further.
      Do not cheat. I'll know.

      What were your results? Are you a Troll Guru, an Apprentice Guru, an Enlightened Guru or The Final Boss Guru? Share your results in the comments section.
      Trusting that you finished it, let's have a look at the questions and some of the answers. The format should be self-explanatory, but I admit I could have chosen less cheesy graphics for it— yes, that's me.


      Question 1: Intense Memory Pressure
      An angry player leaves a 1-star review because your game uses too much memory. You...

       Answer in public, telling the player to upgrade their device and then come back
      This is a popular answer somehow. As much as we might feel like answering this, chances are, we have been too busy (or lazy) to implement a proper architecture. Blaming players for playing with a brick-phone won't get us more sales, so a better strategy is to fix our mess.
       Switch to a more advanced texture compression method, e.g. ETC2 to ASTC
      This is helpful and you should indeed switch to more advanced compression methods, where possible. But this solution will only take you so far. You'll get moderate gains in memory usage and texture quality, but they'll not be enough to cover your memory pressure issues.


       Split your scenes into sub-scenes, so less content is loaded in memory
      In general, sub-scenes used to be a good solution. I've used them in the past with great success. However, if you are having bad reviews already, chances are it is too late to introduce such a massive change in the architecture of your game. Better to look somewhere else.
      Implement an asset lazy-loading mechanism through AssetReferences
      Over 75% of people agreed on this, that's great.
      AssetReferences are likely to give you the biggest gain for the buck. The migration to this workflow is usually straight-forward and much easier than the other alternatives.
      However, be aware that, in some cases, it might be hard to work around the asynchronous requirements of the Unity Addressables API.


      Question 2: Endless Loading Times
      You press the play button. By the time your in-game scene is loaded, your coffee is cold. You...
       Blame the artists and ask them to put every texture into atlases. Also, you buy a faster PC
      10% of the subscribers chose this one. I love you guys.
      Reduce the texture size globally, so asset loading is much faster. You don't submit these meta file changes in your versioning system
      I've done this a few times recently. It works.
      However, the pay to price is high. Your versioning system might go nuts and your changelists will be full of garbage. This is indeed hard to manage, as if you ignore these temporal texture import settings modifications, the real changes will mostly go unnoticed and won't be submitted.
      Create custom scenes that contain just the functionality you are working on
      Creating sub-scenes for faster iterations might be a possibility for your game, but in my experience, they tend to be left unmaintained. With time, they break and one might spend more time fixing them than the gain you eventually had back then.
      Consider implementing sub-scenes only if you don't see these problems in your project.
       Remove direct references and add indirect references instead, so only the required assets are loaded
      Indirect references for the winner.
      Direct references will implicitly ask Unity to load all their content as soon as the script holding them is instantiated. Indirect references, however, gives you full control over the when/how/what. That means, you can delay loading until you need it, if at all, saving you from unnecessary loading times and wasted memory.


      Question 3: What Play Mode Script?
      You are currently implementing materials for your new characters. You want to try Addressables, so in the Play Mode script section of Addressables, you select...
       Fast Mode: we want it always fast, after all
      This is a valid option, but fast mode does no validation at all of important aspects of development, such as asset dependencies and cross-references.
      If there are no substantial changes in the content you're working on, fast mode will be fine. Otherwise, we can do better.
       Packed Play Mode: yes! we want our characters to be packed
      No! The Packed play mode requires you packing the assets every time you do a change in your addressable asset contents, otherwise you'll end up loading the old versions.
      You don't want to be packing every time, it's a huge time sink.
      But you might consider packed play mode once you're done working with addressables content to gain faster iterations, as these assets will require minimum processing while being loaded.
      35% of the Guru Challengers chose this answer.
       Virtual Mode: it sounds safer than fast mode
      Virtual Mode is the option I suggest you using while actively working on your addressable content.
      The virtual mode is fast enough to keep iteration times short and at the same time, it'll give you useful validation checks to avoid screwing it up and finding out the mess way too late.


      Question 4: Oops... Error Diagnosing
      You try Addressables but you don't recall your assets looking pink in your Android device. How weird! You...
       Enable the ADDRESSABLES_LOG_ALL symbol, make a development build and check the logcat logs
      If you came to me with such a description, I wouldn't necessarily take you down this road directly.
      The main issue with adding scripting defines and checking the logs on the device is the time it takes to prepare such a build, deploy it, test it and gather useful information from the logs.
      There are indeed better ways to tackle this, but certainly keep this as a backup option if they fail to give you an accurate diagnosis of the problem.
      Set the play mode script to Packed Play Mode and run it in the editor to further diagnose the issue with the Addressable Profiler
      Emulating as much as you can the environment in which the content will be displayed is my preferred option, as it takes the least total amount of time. You do this by selecting the packed play mode in the main Addressables Window settings. The Unity Editor will load the addressable resources directly from the built content, so this is expected to give you a similar behavior than on the device, as long as the editor can load such a content.
      You can also try running it in virtual play mode, which does some validation on top of the traditional asset loading pipeline for addressables.
      Don't forget to count on the Addressable Profiler's help, a tool that will inform you about the addressable operations that are taking place at all times in your game.
      This answer was correctly chosen by 66% of the participants.
       Post in StackOverflow and Unity Answers
      12% of you see value in posting questions on these platforms, as there are always people willing to help. But preparing a reproduction project, posting and refreshing your screen with F5 is likely to take you much longer than just diagnosing and fixing the problem yourself. Trust me, this should be your last resort.


      Question 5: Heavy Video Packing
      You want your mp4 trailer video to be included in your game. You...
       Toss it into the StreamingAssets folder
      The StreamingAssets directory works just fine, especially when coupled with famous video plugins you find in the store. The assets stored in that directory are not packed together like Resources do but rather left as individual files when your game is installed. Its simplicity and easy I/O is the reason it is the default method of playing video.
      The biggest con is that the assets stored in StreamingAssets are forcefully packed in your distributed game from the beginning, so they are likely to take a lot of space in your build.
      Why would your users have to wait 5 minutes longer just to download the credits video that will be played at the end of a 30+ hours game?
       Mark it as Addressable, add a "videos" label to it
      Sure, making it addressable sounds cool. But adding a "videos" label to it?
      Usually, labels are used to download all assets belonging to that label category at once. Unless you have a very specific use case, doing this is not likely to help your project.
       Mark it as Addressable, adding it to a "videos" group with the following attributes: static content, no compression
      Videos are not likely to change, so making them static makes sense. Also, there's no need to compress them, as the used video codec should already offer you compression. Adding LZ4 or LZMA compression on top of this already-compressed content will only incur in CPU overhead. Your users' battery will drain faster as well. I'm sure your players wouldn't appreciate it.
       Mark it as Addressable, adding it to a "videos" group with the following attributes: dynamic content, LZMA compression
      Dynamic, compressed content is by far the most commonly chosen answer. But it is a misleading one.
      For the reasons stated above, you should avoid using compression on already compressed content. And videos are often enough very static, so by marking that group dynamic you wouldn't be helping your asset building workflows.
      Most people (46%) thought this was to best option.


      Question 6: Memory on Instance Releasing
      You loaded your asset once through LoadAssetAsync. Now you're done with it, so you...
       Call Addressables.Release, so the memory is immediately released
      There's no guarantee that the memory will be freed right away, as the current documentation correctly points out. But do not worry about it too much, it will be correctly freed by Unity. 23% popular.
       Call Destroy, we better make sure we free that memory up
      Addressables is, as of now, unaware of traditional Unity instantiation and destroy mechanisms. If you do so by yourself, you are doing it at your own risk and bookkeeping. If you mess it up, the API and OS are unlikely to be happy about it. And you will know.
       Call Addressables.Release, so the memory is released at some point in the future
      The documentation implies that the memory occupied by addressable assets will be freed at some point in the future after calling the Unity addressables release method.
      You can count on Unity smartly deciding when it is time to do just so (e.g. low memory situations, Resources.UnloadAllUnusedAssets, etc.). You guys got this one right!


      Question 7: Loading with LoadAssetAsync
      You're excited about doing your first Addressables.LoadAssetAsync. So you call it and use its returned handle like...
       while (handle.Status == AsyncOperationStatus.Succeeded) ;
      I confess to you that I've tried this method to try to force a synchronous behavior out of the Addressables API (e.g. Photon Networking under Unity Addressables).
      But you can guess what happened after seeing the answer's smiley. My computer's fan started spinning insanely fast and I had to reboot the computer as the OS became utterly unresponsive. I'm not trying this again any time soon, thanks.
      Doing this loop is likely to cause a deadlock, as part of the loading process is executed in Unity's main thread. And that line of code is the easiest way to block your main thread.
       await handle.Task; or yield return handle;
      These two solutions are asynchronous ways of waiting for the loading process to finish before continuing with our code. That's great stuff for you and me, as they offer great readability and are easy to maintain.
      However, be aware they incur on some performance penalty.
       handle.Completed += OnLoadCompleted;
      This is the simplest and yet most powerful option to do something after the asset has been loaded into memory.
      Keep in mind, though, that you're introducing lambdas and/or callbacks. They will reduce the readability of your code and therefore make your programming style more dangerous. Unless you are a pro, of course.


      Question 8: Migrating to Better Workflows
      You have a bunch of skyboxes living as direct references in your Skybox manager as a list of materials. Those are eating all your memory, so you...
       Move them into the Resources folder and start using Resources.Load as you need them
      No! Bad boy!
      Don't ever use the Resources directory for heavy assets. They are a major cause of pain, tears and  burnouts in large scale projects. It is indeed surprisingly easy to misuse the Resources API. Read more info on why it is so here
       Put all skyboxes in an asset bundle that you will load appropriately
      Asset bundles were a much-needed solution back then. But we have better solutions now with Unity Addressables.
      The issue is that working with asset bundles is way more tedious and expensive to implement and maintain than just using Unity Addressables. Unless you're doing a port and you don't want to touch much of the original systems, try to avoid them.
       Replace the list of skybox materials with a list of AssetReference's and load them as you need
      Using Unity Addressables is probably the best option to tackle this kind of memory issues.
      One of the reasons it is such a silver bullet is because you can easily migrate from the most popular approaches of managing content such as direct references, resources API, additive scenes and asset bundles.
      Unity Addressables are a simpler way to develop more efficient games.
       Decrease the skybox texture sizes
      Tweaking the texture import settings works up to a point. This has an upper ceiling limit, as you cannot infinitely go lower in memory usage (and quality) without re-categorizing your 3d game into pixel-art. This just doesn't scale well.


      Chances are very high that you didn't reach the rank of The Final Boss Guru.
      But that's good, because that means there's massive room for improving and optimizing the way you develop and ship games. And what is more important, your players will appreciate the expertise you build in each of these areas. The only place you want to read 1-star reviews is at the app store of your competitor's game.
      Given the importance of delivering enjoyable experiences to your players, I will share something with you.
      Between you and me: I have a work-in-progress plan for maximizing the potential of your game with Addressables. In the upcoming weeks, I will be revealing to you more information about the Unity Addressables level-up program I'm developing. That program is going to get you to the production level you need to deliver the games people will deeply enjoy (purchasing and) playing.
      To make sure you don't miss on the upcoming content, subscribe now to the newsletter. I'll keep you posted.
      Till then, comment below on what you would like to learn the most and also how you plan to use Unity Addressables in your project.
      See you soon on the blog!
      Rubén
    • By TehosKhiin
      Hello,
      It's my first time posting anything on this forum but I thought it was time to step up my knowledge about gaming theory and game design if I want to get into the industry. I have a lot of ideas of games that would be great. I write everything, draw characters, right stories, design and think about gameplay mechanics etc. A day I had an epiphany about a fighting game with Sekiro's gameplay. I know of course there would be a lot of problems with...camera being wonky, the guard bar must be readjusted, and the major problem would be the deflect spamming. But personally I think that with some adjustments, great character, some risk reward (like you can cancel an attack to throw of your opponent or if you try to deflect and miss your deflect you get punished for 'spamming') mechanics, It would be an engaging experience. It would be intuitive, easy to learn hard to master and mind games.
      Of course, I write all of this because I intent to begin digging a bit deeper with that idea. If any of you think this is crap or it is the wrong section of the forum feel free to report me. Sorry if it is the case ^^.
      Hope it will interest anybody.
    • By Tape_Worm
      Same as the previous image, only using more recent code (hence the lower frame rate).
      A major difference is that I'm using multiple cameras to simulate parallax between the sun, earth,(you can't see it) the moon, and the other ships.
      Doing this little experiment has been so helpful in dog-fooding Gorgon.
×

Important Information

By using GameDev.net, you agree to our community Guidelines, Terms of Use, and Privacy Policy.

GameDev.net is your game development community. Create an account for your GameDev Portfolio and participate in the largest developer community in the games industry.

Sign me up!
